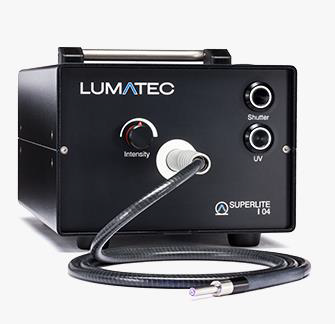

Compact, quiet, very powerful and engineered to achieve excellent results, the SUPERLITE I 04 is your first choice for FPI (fluorescent penetrant inspection). This instrument's high-quality filters provide pure UV light without any white so even the smallest inclusions and flaws are clearly visible. Switching from white light to UV and back is very easy using the front-panel button or footswitch.

Spectrum

Power

Power Density

UVA

320-400 nm

3,000mW

15,000mW/cm2

White

400-700nm

2,500mW

12,500mW/cm2

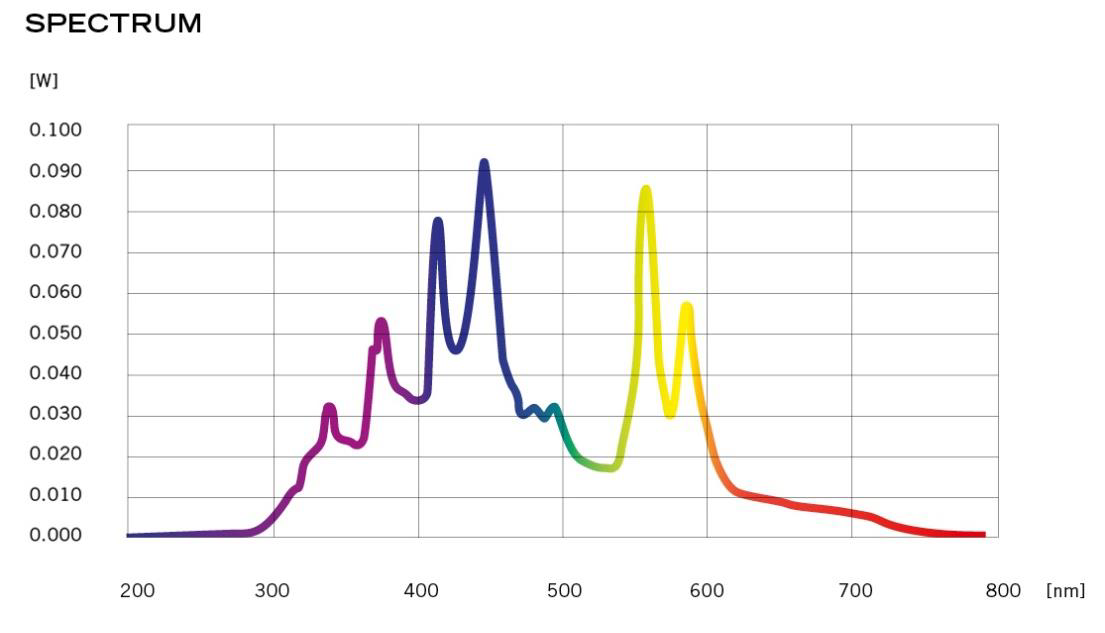

Our tried-and-true light sources, the SUPERLITE I 05 and I 05 UVC meet conventional demands for all light-curing adhesives. On top of that, they provide controlled UV light options that can range down to short-wave spectra below 320 nm. Some adhesive curing methods cannot do without this type of high-energy UV light with a short wavelength, and all applications benefit from a reliable and constant source of UV light.

Spectrum

Power

Power Density

UVB

280-320 nm

500mW

2,500mW/cm2

UVA

320-400 nm

4,500mW

22,500mW/cm2

Violet

400-420 nm

2,000mW

10,000mW/cm2

Blue

400-500 nm

8,000mW

40,000mW/cm2

UVA-Violet

320-420 nm

6,500mW

32,500mW/cm2

UVA-Blue

320-500 nm

12,500mW

62,500mW/cm2

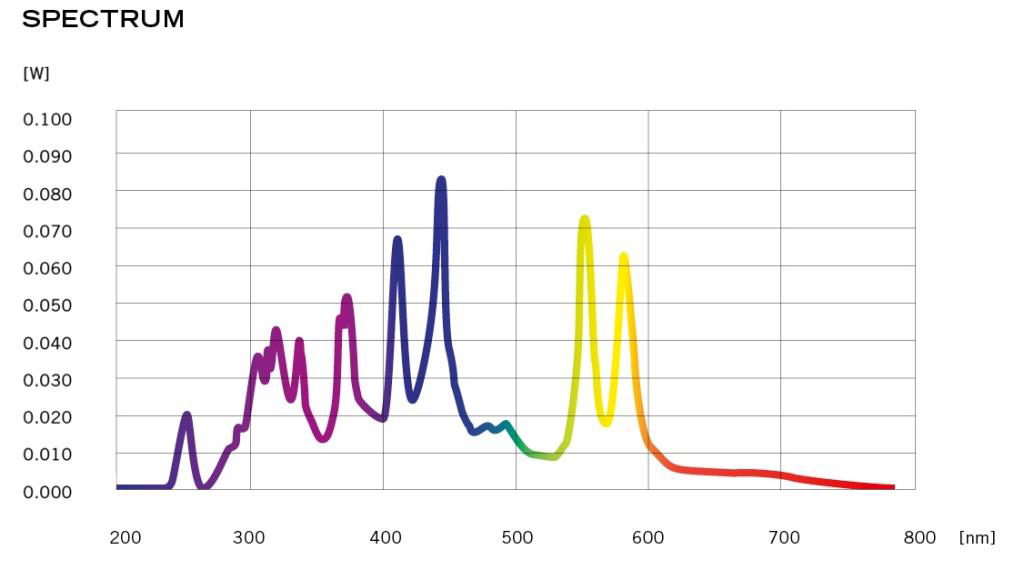

Our tried-and-true light sources, the SUPERLITE I 05 and I 05 UVC meet conventional demands for all light-curing adhesives. On top of that, they provide controlled UV light options that can range down to short-wave spectra below 320 nm. Some adhesive curing methods cannot do without this type of high-energy UV light with a short wavelength, and all applications benefit from a reliable and constant source of UV light.

Spectrum

Power

Power Density

UVC

220-280 nm

500mW

2,500mW/cm2

UVB

280-320 nm

2,000mW

10,000mW/cm2

UVA

320-400 nm

3,500mW

17,500mW/cm2

Violet

400-420 nm

1,300mW

6,500mW/cm2

Blue

400-500 nm

5,000mW

25,000mW/cm2

UVC-UVA

220-400 nm

6,000mW

30,000mW/cm2

UVC-Blue

220-500 nm

11,000mW

55,000mW/cm2
