Lamp
1. 단색광원장치 (300W, 250W 제논, 텅스텐할로겐 광원사용)
 |
The standard configuration of a TLS includes a lamp housing with Xe or QTH lamp, power supply with touchscreen, monochromator (1/8 or 1/4 meter), automated filter wheel (with 6 filters) and shutter mounted to a metal breadboard to create a compact, fully assembled illuminator, controlled by original software. Each system is pre-aligned during production and packaged with the system’s test data and detailed manual. |
Tunable Light Source 모델
TLS-72-X300 : 300W Xe lamp , 1/8m 분광기, 파장 200-2500nm
TLS-72-Q250 : 250W QTH lamp, 1/8m 분광기, 파장 350-2500nm
TLS-55-X300 : 300W Xe lamp, 1/4m 분광기, 파장 200-2500nm
TLS-55-Q250 : 250W QTH lamp, 1/4m 분광기, 파장 350-2500nm
2. 소형 단색광원장치
 |
 |
Tunable light sources are used to illuminate materials with only a small specific range of wave-lengths. They are used to study wavelength dependent chemical, biological, and physical changes or properties. The sources can also be used in color analysis and reflectivity measurements of products for aesthetic purposes. |

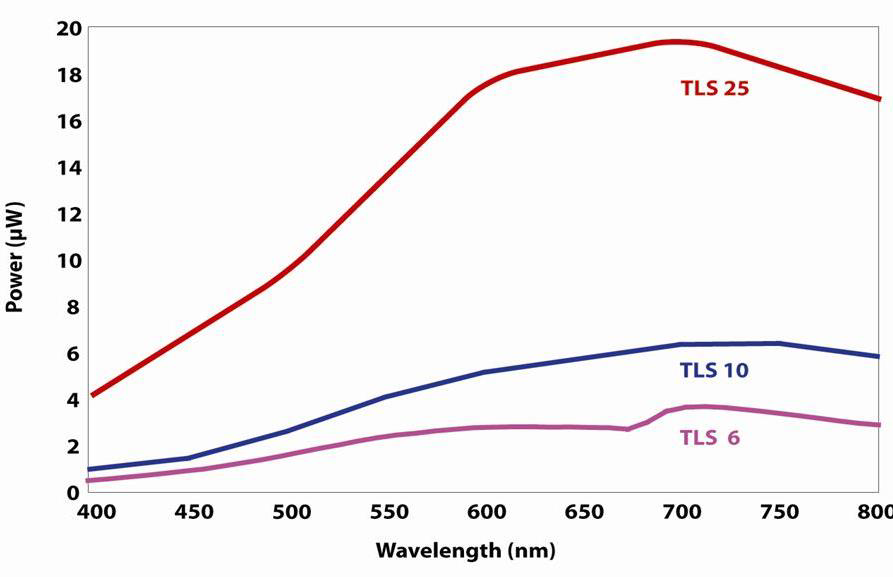

| Manual TLS | Computer controlled TLS |
| 모델 | Bandpass(nm) | 파장(nm) |  |
| Manual Versions | |||
| TLS-6 M | 6 | 360-800 | |
| TLS-10 M | 10 | 360-800 | |
| TLS-25 M | 25 | 360-1000 | |
| Computer Controlled Versions | |||
| TLS-6 C | 6 | 360-800 | |
| TLS-10 C | 10 | 360-800 | |
| TLS-25 C | 15 | 360-1000 | |
