High intensity and precision illumination sources with metal halide lamp and twin mirror system.
Much bright and efficient illumination using short arc metal halide lamp.
High stability and low ripple output. Suitable for high-speed image processing.

Lamp Type

Mirror integrated metal halide lamp DC250W

Lamp Life

Average 2,000 hours (to decrease in light intensity by 30% from initial value)

Power Supply

AC90 − 132V 50/60Hz

Input Voltage

AC100V±10% 50/60Hz

Power Consumption

about 330W

Illuminance

80,000lx or more (initial value) at a position 100mm from Illumination Intensity the edge of the light guide of L=500mm and φ5

Color Temperature

7,500°K

Cooling Method

Forced-air cooling method

External Dimensions

(W)150×(H)205×(D)309mm (excluding rubber feet and protrusions)

Light Intensity
Adjustment Method

Interface

Shutter

External Control

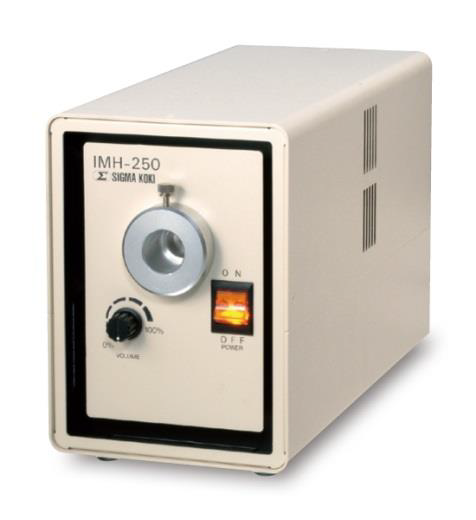

IMH-250

Manual

None

None

None

IMH-250A

Manual and remote selection with switch

TTL

None

D-sub25pin

IMH-250SL

Manual

TTL

External

BNC
