MTR3CMOS Series TE-Cooling C-mount USB3.0 CMOS Camera(13)
The MTR3CMOS adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. MTR3CMOS hardware resolutions range from 1.7M to 45M and come with the integrated CNC aluminum alloy compact housing.
With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.
MTR3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/ Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
The MTR3CMOS can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| MTR3CMOS45000KPA MTRP145000A 20200118 |
45M/IMX492(M) 4/3"(17.47x12.86) |
2.315x2.315 | TBD |
8@8192x5556
|
1x1, 1x1, 1x1 |
0.1ms~3600s |
| MTR3CMOS26000KPA MTRP126000A 20200301 |
26M/IMX571(C) 1.8"(23.48x15.67) |
3.76x3.76 | 485mv with 1/30s 0.07mv with 1/30s |
14@6224x4168(16bit)
|
1x1, 2x2, 3x3 |
0.1ms~3600s |
| MTR3CMOS09000KPA MTRP109000A 20100301 |
9M/IMX533(C) 1"(11.28x11.28)
|
3.76x3.76 | 534mv with 1/30s 0.10mv with 1/30s |
42@3000x3000(14bit)
|
1x1, 2x2, 3x3 |
0.1ms~3600s |
| MTR3CMOS21000KPA MTRP121000A 20191231 |
21M/IMX183(C) 4/3"(17.40x13.10) |
3.3x3.3 | 400mv with 1/30s 0.10mv with 1/30s |
5@5280x3956
|
1x1, 1x1, 2x2, 3x3, 9x9 |
0.1ms~3600s |
| MTR3CMOS20000KPA MTRP120000A |
20M/IMX183(C) 1"(13.06x8.76) |
2.4x2.4 | 462mv with 1/30s 0.21mv with 1/30s |
5@5440x3648
|
1x1, 2x2, 3x3 |
0.1ms~3600s |
| MTR3CMOS20000KMA MTRM120000A |
20M/IMX183(M) 1"(13.06x8.76) |
2.4x2.4 | 388mv with 1/30s 0.21mv with 1/30s |
17.8@5440x3648
|
1x1, 2x2, 3x3 |
0.1ms~3600s |
| MTR3CMOS16000KPA MTR3P116000A |
16M/MN34230(C) 4/3“ (17.60x13.30) |
3.8x3.8 | 2413LSB 89.1LSB (Gain = 0dB) |
6 @4648x3506
|
1x1, 2x2, 3x3 |
0.15ms~3600s |
| MTR3CMOS16000KMA MTR3M116000A |
16M/MN34230(M) 4/3“ (17.60x13.30) |
3.8x3.85 | 2560LSB 89.1 LSB (Gain=0dB) |
22.5 @4648x3506
|
1x1, 2x2, 3x3 |
0.15ms~3600s |
| MTR3CMOS10300KPA MTR3P110300A |
10.3M/IMX294(C) 4/3"(17.47x12.86) |
4.63x4.63 | 419mv with 1/30s 0.12mv with 1/30s |
7.5@3704x2778
|
1x1, 1x1, 2x2, 3x3 |
0.15ms~3600s |
| MTR3CMOS07100KPA MTRP107100A |
7M/IMX428(C，GS) 1.1"(14.4x9.9) |
4.5x4.5 | 2058mv with 1/30s 0.15mv with 1/30s |
12 @3200x2200
|
1x1, 2x2 |
0.1ms~3600s |
| MTR3CMOS07100KMA MTRM107100A |
7M/IMX428(M，GS) 1.1"(14.4x9.9) |
4.5x4.5 | 3354mv with 1/30s 0.15mv with 1/30s |
51 @3200x2200
|
1x1, 2x2 |
0.1ms~3600s |
| MTR3CMOS01700KPA MTRP101700A |
1.7M/IMX432(C，GS) 1.1"(14.4x9.9) |
9.0x9.0 | 4910mv with 1/30s 0.15mv with 1/30s |
33 @1600x1100
|
1x1 | 0.1ms~3600s |
| MTR3CMOS01700KMA MTRM101700A |
1.7M/IMX432(M，GS) 1.1"(14.4x9.9) |
9.0x9.0 | 8100mv with 1/30s 0.30mv with 1/30s |
94 @1600x1100
|
1x1 | 0.1ms~3600s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture and Movie |
| Cooling System* | Two-stage TE-cooling System -42 °C below Camera Body Temperature |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V,3A |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17" or Larger | |
| CD-ROM | |

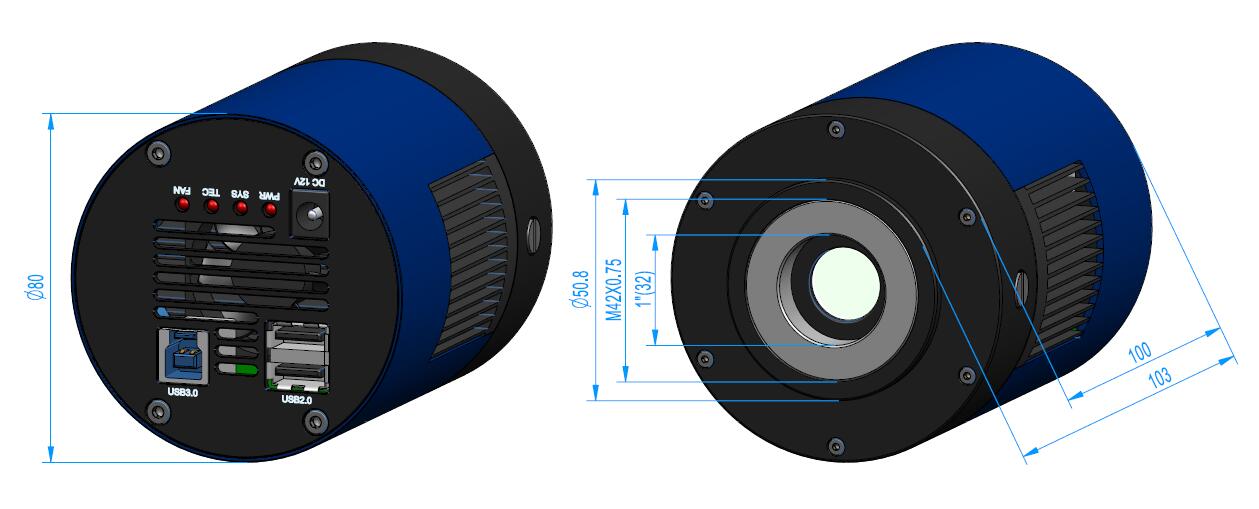

Dimension of MTR3CMOS Series Camera
|
Installation drawings(Click to enlarge). The MTR3CMOS body, made from CNC alumnium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
 |
| Dimension of MTR3CMOS Series Camera |
