U3CCD Series C-mount USB3.0 CCD Camera(10)
ToupTek U3CCD is an ExView HAD CCD series camera. It adopts Sony ExView HAD CCD sensor as the image-picking device. Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. ToupTek uses EXCCD for simplicity. USB3.0 is used as the data transfer interface.
U3CCD camera hardware resolutions range from 1.4M to 12M and come with the integrated CNC aluminum alloy compact housing.
U3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
The U3CCD can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| U3CCD12000KPA NP112000A(New) |
12M/ICX834AQG(C) 1"(13.15x8.77) |
3.10x3.10 | 420mv with 1/30s 15.2mv with 1/30s |
3.6@4284x2836
|
1x1 2x2 |
0.06ms~1000s |
| U3CCD12000KMA NM112000A(New) |
12M/ICX834ALG(M) 1"(13.15x8.77) |
3.10x3.10 | 420mv with 1/30s 12mv with 1/30s (F#=8.0) |
3.6@4284x2836
|
1x1 2x2 |
0.06ms~1000s |
| U3CCD09000KPA NP109000A(New) |
9.0M/ICX814AQG(C) 1"(12.47x9.98) |
3.69x3.69 | 580mv with 1/30s 12mv with 1/30s |
4.4@3388x2712
|
1x1 2x2 |
0.06ms~1000s |
| U3CCD09000KMA NM109000A(New) |
9.0M/ICX814ALG(M) 1"(12.47x9.98) |
3.69x3.69 | 660mv with 1/30s 12mv with 1/30s (F#=8.0) |
4.4@3388x2712
|
1x1 2x2 |
0.06ms~1000s |
| U3CCD06000KPA NP106000A(New) |
6.0M/ICX694AQG(C) 1"(12.48x9.99) |
4.54x4.54 | 1000mv with 1/30s 8mv with 1/30s |
7.5@2748x2200
|
1x1 | 0.06ms~1000s |
| U3CCD06000KMA NM106000A(New) |
6.0M/ICX694ALG(M) 1"(12.48x9.99) |
4.54x4.54 | 1000mv with 1/30s 8mv with 1/30s |
7.5@2748x2200
|
1x1 | 0.06ms~1000s |
| U3CCD02800KPA NP102800A(New) |
2.8M/ICX674AQG(C) 2/3"(8.81x6.63) |
4.54x4.54 | 800mv with 1/30s 4mv with 1/30s |
15@1938x1460
|
1x1 | 0.05ms~1000s |
| U3CCD02800KMA NM102800A(New) |
2.8M/ICX674ALG(M) 2/3"(8.81x6.63) |
4.54x4.54 | 950mv with 1/30s 4mv with 1/30s |
15@1938x1460
|
1x1 | 0.05ms~1000s |
| U3CCD01400KPB NP101400A(New) |
1.4M/ICX825AQA(C) 2/3"(8.88x6.70) |
6.45x6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360x1040
|
1x1 | 0.07ms~1000s |
| U3CCD01400KMB NM101400A(New) |
1.4M/ICX825ALA(M) 2/3"(8.88x6.70) |
6.45x6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360x1040
|
1x1 | 0.07ms~1000s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB3.0 Port |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17" or Larger | |
| CD-ROM | |

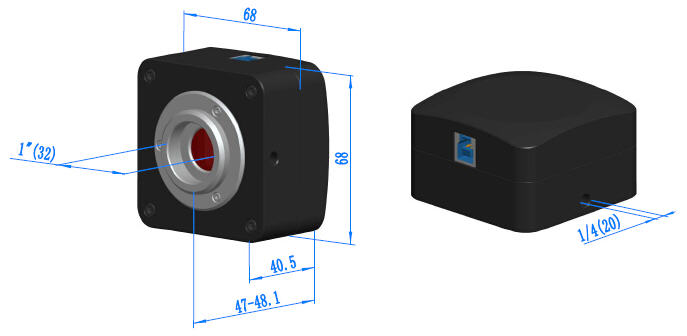

U3CCD Series C-Mount USB3.0 CCD Camera Dimension
|
Installation drawings(Click to enlarge). The U3CCD Series USB3.0 CCD Camera body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. This design ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
 |
| Dimension for U3CCD Series C-Mount USB3.0 CCD Camera |
