E3ISPM Series C-mount USB3.0 CMOS Camera(16)

E3ISPM adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. E3ISPM hardware resolutions range from 1.5M to 21M and come with the integrated CNC aluminum alloy compact housing.

E3ISPM integrated with 12 bit Ultra-fine Hardware Image Signal Processor Video Pipline(Ultra-fineTM HISPVP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed.

E3ISPM comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

The E3ISPM can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
E3ISPM21000KPA IP121000A	21M/IMX269(C) 4/3"(17.40x13.00)	3.3x3.3	399mv with 1/30s 0.1mv with 1/30s	17@5280x3954 17@3952x3952 56 @2640x1976 67@1760x1316 192@584x438	1x1, 2x2, 3x3, 9x9	0.1ms~15s
E3ISPM20000KPA IP120000A	20M/IMX183(C) 1"(13.06x8.76)	2.4x2.4	462mv with 1/30s 0.21mv with 1/30s	15@5440x3648 50 @2736x1824 60@1824x1216	1x1, 2x2, 3x3	0.1ms~15s
E3ISPM18000KPA IP118000A	18M/Sony Special(C) 1/2.2"(5.86x4.46)	1.2x1.2	130mv with 1/30s 0.10mv with 1/30s	17@4880x3720 40@2448x1836 50@1728x1296	1x1, 2x2, 3x3	0.1ms~15s
E3ISPM15600KPA IP115600A	15.6M/Sony Special(C) 1.1"(13.0x13.0)	3.3x3.3	399mv with 1/30s 0.10mv with 1/30s	17@3592x3592 56@1796x1796 67@1316x1316	1x1, 2x2, 3x3	0.1ms~15s
E3ISPM12300KPA IP112300ANew)	12M/IMX304(C,GS) 1"(14.13x10.35)	3.45x3.45	1146mv with 1/30s 0.1mv with 1/30s	23.4@4096x3000 46.3@2048x1500	1x1	0.244ms~15s
E3ISPM12000KPA IP112000A	12M/IMX226(C) 1/1.7"(7.40x5.55)	1.85x1.85	280mv with 1/30s 0.10mv with 1/30s	25@4000x3000 50@2048x1080	1x1, 2x2	0.1ms~15s
E3ISPM09000KPA IP109000ANew)	9M/IMX305(C,GS) 1"(14.13x7.45)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	34@4096x2160 60@2048x1080	1x1, 2x2,	0.1ms~15s
E3ISPM08300KPA IP108300A(New)	8.3M/IMX274(C) 1/2.5"(6.22x3.50)	1.62x1.62	236mv with 1/30s 0.15mv with 1/30s	34@ 3840x2160 65@ 1920x1080	1x1, 2x2,	0.244ms~15s
E3ISPM08300KPB IP108300B(New)	8.3M/IMX334(C) 1/1.8"(7.68x4.32)	2.0x2.0	505mv with 1/30s 0.15mv with 1/30s	35@ 3840x2160 65@ 1920x1080	1x1, 2x2,	0.02ms~15s
E3ISPM06300KPA IP106300ANew)	6.3M/IMX178(C) 1/1.8"(7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	30 @3072x2048 38 @1536x1024	1x1,2x2	0.1ms~15s
E3ISPM06300KPB IP106300BNew)	6.3M/IMX178(C) 1/1.8"(7.37x4.92)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	59 @3072x2048 59 @1536x1024	1x1,2x2	0.02ms~15s
E3ISPM05000KPA IP105000A(New)	5.0M/IMX264(C, GS) 2/3” (8.45x7.07)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	35 @2448x2048 50 @1224x1024	1x1	0.1ms~15s
E3ISPM03100KPA IP103100ANew)	3.1M/IMX265(C,GS) 1/1.8"(7.07x5.30)	3.45x3.45	1146mv with 1/30s 0.15mv with 1/30s	53 @2048x1536 85 @1024x768	1x1	0.1ms~15s
E3ISPM03100KPB IP103100B	3.1M/IMX123(C) 1/2.8"(5.12x3.84)	2.5x2.5	600mv with 1/30s 0.15mv with 1/30s	50 @2048x1536	1x1	0.1ms~15s
E3ISPM02000KPA IP102000ANew)	2.0M/IMX385(C) 1/2"(7.20x4.05)	3.75x3.75	2350mv with 1/30s 0.15mv with 1/30s	125 @1920x1080	1x1	0.1ms~15s
E3ISPM01500KPA IP101500A	1.5M/IMX273(C,GS) 1/2.9"(4.968x3.726)	3.45x3.45	1145mv with 1/30s 0.15mv with 1/30s	164 @1440x1080 320 @720x540	1x1 2x2	0.1ms~15s

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10 °C~ 50 °C
Storage Temperature	-20 °C~ 60 °C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17" or Larger
	CD-ROM

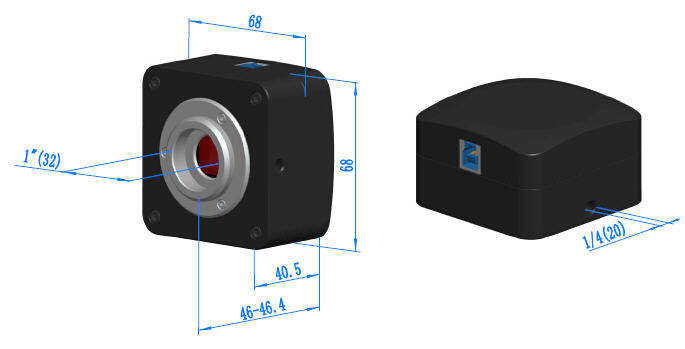

Installation drawings(Click to enlarge). The E3ISPM body, made from CNC alumnium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension of E3ISPM Series Camera
