MTR3CCD Series C-mount Temature Regulated USB3.0 CCD Camera(12)
MTR3CCD：ToupTek MTR3CCD is an Microscope Temterature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device. Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor.
MTR3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
The MTR3CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| MTR3CCD12000KPA MP112000A(New) |
12.0M/ICX834AQG(C) 1"(13.15x8.77) |
3.10x3.10 | 420mv with 1/30s 15.2mv with 1/30s |
3.6@4248x2836
|
1x1 2x2 |
0.06ms~3600s |
| MTR3CCD12000KMA MM112000A(New) |
12.0M/ICX834ALG(C) 1"(13.15x8.77) |
3.10x3.10 | 420mv with 1/30s 12mv with 1/30s(F8.0) |
3.6@4248x2836
|
1x1 2x2 |
0.06ms~3600s |
| MTR3CCD09000KPA MP109000A(New) |
9.0M/ICX814AQG(C) 1"(12.47x9.98) |
3.69x3.69 | 580mv with 1/30s 12mv with 1/30s |
4.4 @3388x2712
|
1x1 2x2 |
0.06ms~3600s |
| MTR3CCD09000KMA MM109000A(New) |
9.0M/ICX814ALG(C) 1"(12.47x9.98) |
3.69x3.69 | 580mv with 1/30s 12mv with 1/30s(F8.0) |
4.4 @3388x2712
|
1x1 2x2 |
0.06ms~3600s |
| MTR3CCD06000KPA MP106000A(New) |
6.0M/ICX694AQG(C) 1"(12.48x9.99) |
4.54x4.54 | 880mv with 1/30s 8mv with 1/30s |
7.5@2748x2200
|
1x1 | 0.06ms~3600s |
| MTR3CCD06000KMA MM106000A(New) |
6.0M/ICX694ALG(M) 1"(12.48x9.998) |
4.54x4.54 | 1000mv with 1/30s 8mv with 1/30s |
7.5@2748x2200
|
1x1 | 0.06ms~3600s |
| MTR3CCD02800KPA MP102800A(New) |
2.8M/ICX674AQG(C) 2/3"(8.81x6.63) |
4.54x4.54 | 800mv with 1/30s 4mv with 1/30s |
15@1940x1460
|
1x1 | 0.05ms~3600s |
| MTR3CCD02800KMA MM102800A(New) |
2.8M/ICX674ALG(M) 2/3"(8.81x6.63) |
4.54x4.54 | 950mv with 1/30s 4mv with 1/30s |
15@1940x1460
|
1x1 | 0.05ms~3600s |
| MTR3CCD01400KPA MP101400A(New) |
1.4M/ICX285AQA(C) 2/3"(8.88x6.70) |
6.45x6.45 | 1240mv with 1/30s 10mv with 1/30s |
15@1360x1024
|
1x1 | 0.07ms~3600s |
| MTR3CCD01400KMA MM101400A(New) |
1.4M/ICX285ALA(M) 2/3"(8.88x6.70) |
6.45x6.45 | 1300mv with 1/30s 11mv with 1/30s |
15@1360x1024
|
1x1 | 0.07ms~3600s |
| MTR3CCD01400KPB MP101400A(New) |
1.4M/ICX825AQA(C) 2/3"(8.88x6.70) |
6.45x6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360x1040
|
1x1 | 0.07ms~3600s |
| MTR3CCD01400KMB MM101400A(New) |
1.4M/ICX825ALA(M) 2/3"(8.88x6.70) |
6.45x6.45 | 2000mv with 1/30s 4.8mv with 1/30s |
25@1360x1040
|
1x1 | 0.07ms~3600s |
| OTHER HARDWARE CONFIGURATION | |
|---|---|
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
| Recording System | Still Picture and Movie |
| Cooling System* | Two-stage TE-cooling System -45 °C below Camera Body Temperature |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port External Power Adapter for Cooling System, DC12V,3A |
| SOFTWARE ENVIRONMENT | |
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17" or Larger | |
| CD-ROM | |
Dimension of MTR3CCD Series Camera
|

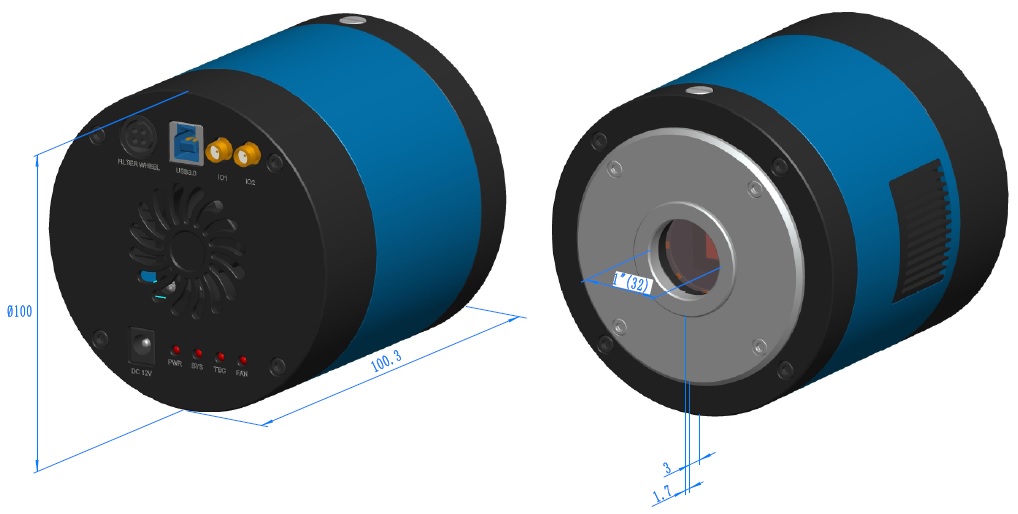

Installation drawings(Click to enlarge). The MTR3CCD Series USB3.0 CCD Camera body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
 |
| Dimension for MTR3CCD Series Camera |
