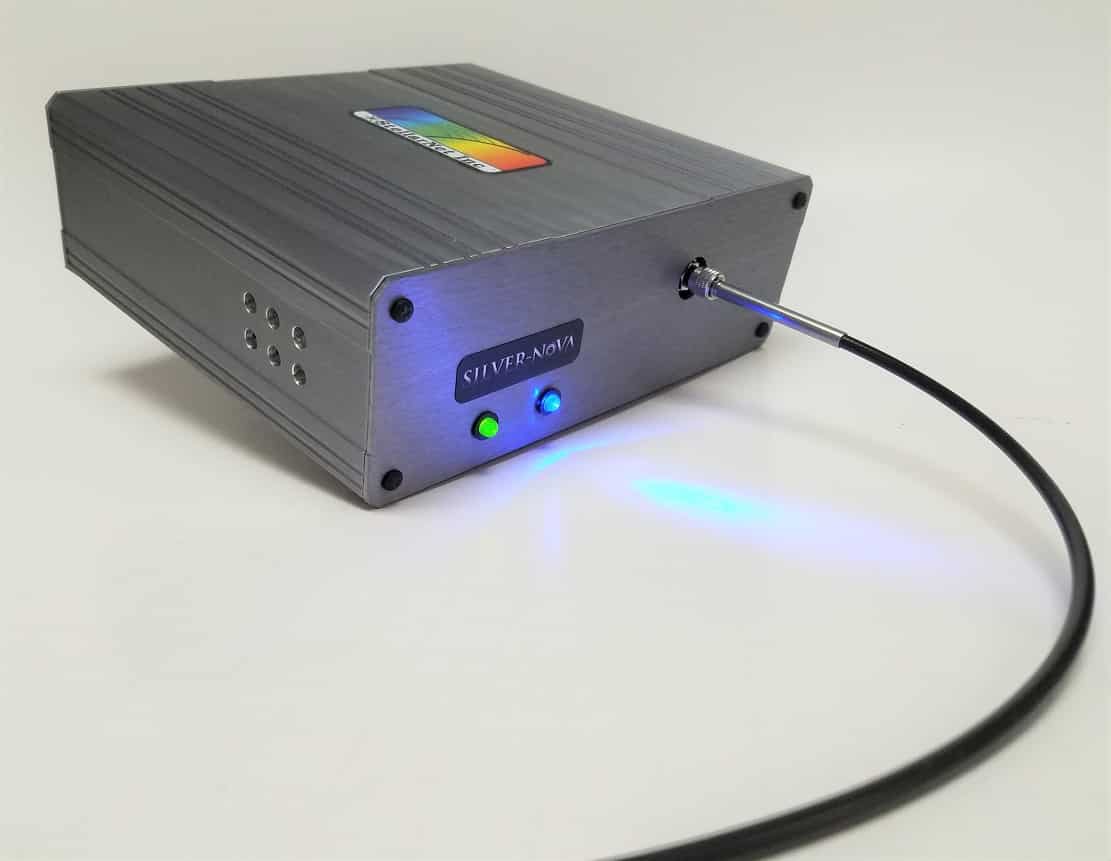

SILVER-Nova Super Range TE Cooled Spectrometer (냉각 기능이 있는 광대역 스펙트로메터)
| Model | Wavelength Range (nm) | Slit-200 nm res. | Slit-100 nm res. | Slit-50 nm res. | Slit-25 nm res. | Slit-14 nm res. |
| SILVER-Nova | 190-1110 | 8.00 | 4.00 | 2.00 | 1.00 | 0.75 |
| Specification | |||
| Dynamic Range: | 2000:1 with 6 decades | Dimensions: | 6 x 17 x 15.5 cm |
| Optical Resolution: | 1nm with 25um slit | TEC Power: | 5 VDC@1A adapter included |
| Detector Type: | 2048 pixel CCD/ TE cooled | Interface Power: | USB-2 = 100ma@5VDC |
| Detector Range: | 190-1110nm | Data Transfer Speed: | 30Hz |
| Pixel Size: | 14 x 200 um | Detector Integration: | 1ms to 65s |
| eXtreme Gratings: | Dual Blaze @250 &1000nm | Slit Size Options: | 14, 25, 50, 100, 200 um |
| Grating type: | Holographic 600 line | Stray Light: | <0.1% at 435 nm; <0.15% at 200 nm |
| Spectrograph: | f/4, HR-Czerny-Turner | Fiber Optic Input: | SMA905 0.22 na single fiber |
| Order Sorting Filter: | Integrated & High Pass | Operating Systems: | Win XP, Vista, 7, 8, & 10 |
| Signal to Noise: | 1000:1 CCD | Software Included: | SpectraWiz program & apps |
| Digitizer: | 16-bit | Also Free Programs For: | LabView / VC / VBA / Delphi |
The SpectraWiz software is included to accurately measure wavelength emissions, reflectance, transmission, absorption, concentrations, and absolute intensities.
