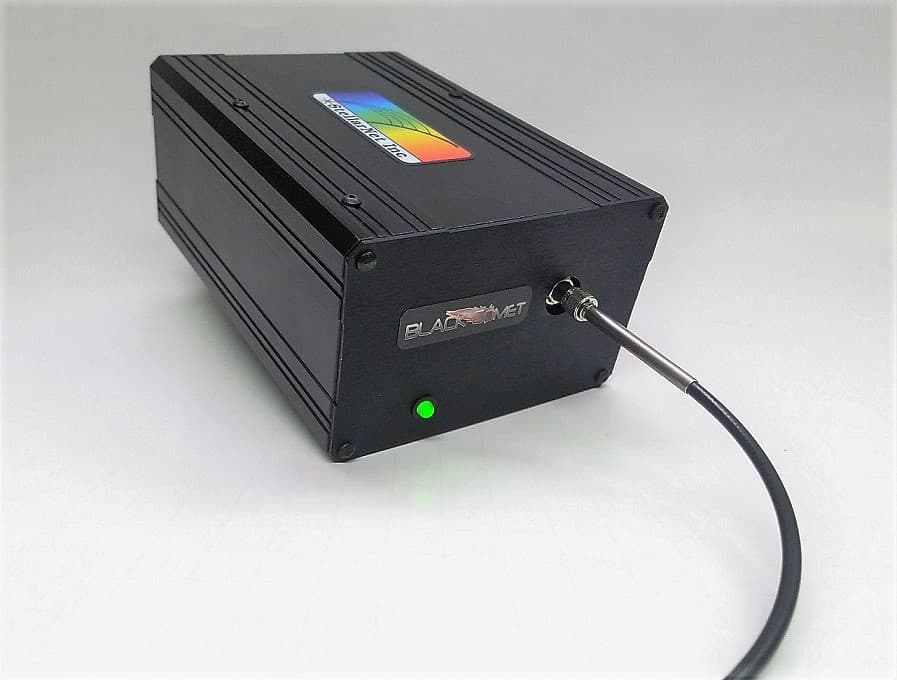

Black-Comet UV-VIS-NIR Spectrometer

* StellarNet technical staff is currently updating available web database. Send us an email at ContactUs@StellarNet.us if you want a specific spectrum that hasn’t been posted yet

Specifications: BLACK-Comet Spectrometers
Dynamic Range:	2000:1 with 6 decades	Dimensions:	69 x 100 x 150 mm
Optical Resolution:	< 1 nm Resolving Res. with 25um slit	Power Consumption:	100 mA @ 5 VDC
Detector Type:	2048 pixel CCD, PDA opt.	Interface:	USB-2
Detector Range:	see above	Data Transfer Speed:	3x / 40x faster than USB-1
Pixel Size:	14 um x 200 um	Detector Integration:	1 ms to 65 s
Concave Grating:	Aberration corrected	Slit Size Options:	14, 25, 50, 100, 200 um
Grating Type:	Holographic, 590 g/mm	Stray Light:	0.02% at 435 nm; 0.2% at 200 nm
Spectrograph:	f/2, Flat field – No mirrors	Fiber Optic Input:	SMA905 0.22 na single fiber
Order Sorting Filter:	Integrated multi-band	Operating Systems:	Win XP, Vista, 7, 8, & 10
Signal to Noise:	1000:1 CCD, *TEC optional upgrade	Software Included:	SpectraWiz program & apps
Digitizer:	16-bit	Also Free Programs For:	LabView / VC / VBA / Delphi

*BLACK-Comet TE Cooler upgrades reduce the temperature of the CCD to 15 degrees below ambient and increase instrument S/N by 60% at long exposures, improving low light measurement quality for fluorescence and other weak emission applications. In order to achieve low temperatures the TEC add-on includes a new sealed and isolated detector enclosure with specialized heat sink and air flow design for added stability and cool operation.
