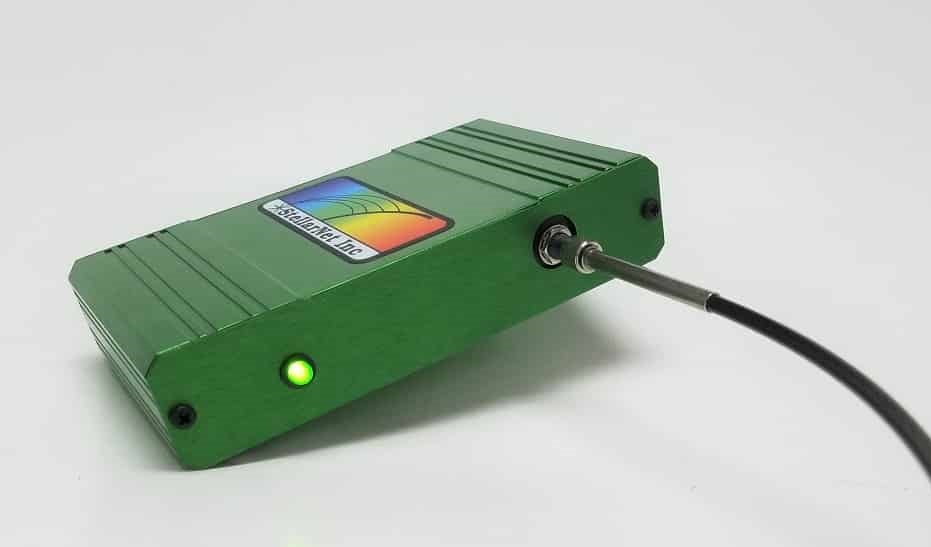

GREEN-Wave Low Cost Spectrometer (저렴한 스펙트로메터)
| GREEN-Wave Spectrometer Configs 2048 pixel CCD/PDA detectors Predicted Slit Resolving Resolutions | |||||||
| Model | WavelengthRange (nm) | Grating g/mm | Slit-200 nm res. | Slit-100 nm res. | Slit-50 nm res. | Slit-25 nm res. | Slit-14 nm res. |
| VIS | 350-1150 | 600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| NIR | 500-1150 | 600 | 6.0 | 3.2 | 1.6 | 1.00 | 0.80 |
| NIR2 | 600-1000 | 1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR2b | 785-1150 | 1200 | 3.0 | 1.6 | 0.8 | 0.50 | 0.40 |
| NIR3 | 550-840 | 1800 | 2.2 | 1.2 | 0.6 | 0.35 | 0.28 |
| NIR3b | 680-935 | 1800 | 2.2 | 1.2 | 0.6 | 0.35 | 0.28 |
| NIR4 | 500-700 | 2400 | 1.5 | 0.8 | 0.4 | 0.25 | 0.20 |
| NIR4b | 600-800 | 2400 | 1.5 | 0.8 | 0.4 | 0.25 | 0.20 |
| Specifications GREEN-Wave Low Cost Spectrometers | |
| Dynamic range: 2000:1 with 6 decades | Dimensions: 1x3x5 inch = 25x75x125mm |
| Optical resolution: see model table – to 0.2nm | Weight:: 14 ounces |
| Detector type: CCD -2048 pixels | Power consumption: < 100 mA via USB port |
| Detector range: 350-1150nm (<350 –BLUE-Wave) | Interface: USB2 |
| Pixel size: 14 x 200um | Detector Integration: 1ms to 6s |
| Diffraction Gratings: Holographic & Ruled | Slit size options: 14, 25, 50, 100, 200um |
| Grating g/mm: 300, 600,1200,1800, 2400 | Stray light: <.1% at 435nm;<.05% at 600nm |
| Spectrograph: f/4, SymX-Czerny–Turner | Fiber optic input: SMA905 0.22na single fiber |
| Order sorting filters: Integrated & High Pass | Operating systems: Win XP, Vista, 7, 8, & 10 |
| Signal to noise: 400:1 | Software included: SpectraWiz program & apps |
| Digitizer: 16-bit | Also free programs for: LabView, Excel+VBA, Delphi |
