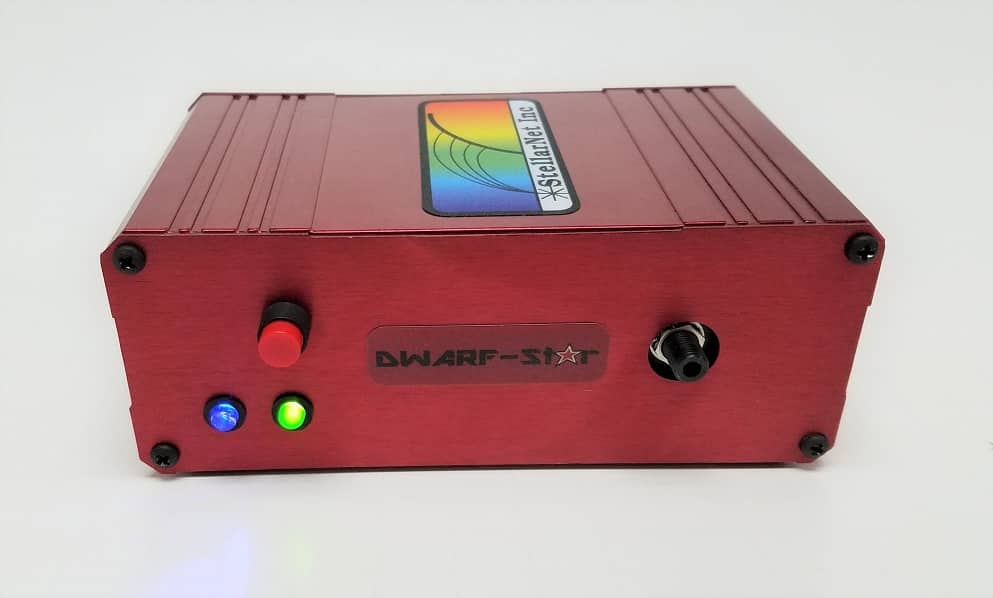

DWARF-Star (900-1700nm) (NIR, 근적외선 스펙트로메터)

NIR Measurements in the 900-1700nm range

Spectral resolution down to 1nm for certain models

Miniature size 5x3x2″ with rugged, compact design

Integrated thermo electric cooler set to operate at -15 deg C

Complete Software Development and Integrated Chemometrics options

For NIR portable and OEM applications

DWARF-star Models	Number of Elements	Spectrometer Range (nm)	Grating (g/mm)	Grating Range (nm)	Dispersion (nm/pixel)	Estimated Resolving Resolution
NIR	512	900-1700	250	800nm	1.25	2.50nm
NIRb	512	1000-1700	300	650nm	1.00	2.00nm
NIR2	512	1250-1575	600	325nm	0.50	1.00nm
NIR2b	512	1150-1475	600	325nm	0.50	1.00nm
NIR	1024	1000-1700	600	700nm	0.62	1.25nm

Specifications DWARF-Star NIR Spectrometer OEM Pricing available
Dynamic range: 4000:1 with 5 decades	Dimensions: 5″x3″x2″
Resolving resolution: 2.5nm with 25μm slit	Power consumption: 1.5 Amps @ 5 VDC
InGaAs Detector: 512 or 1024 pixels	Interface: USB-2
Detector range: 900-1700nm	Data transfer speed: 40x faster than USB-1
Pixel size: 25um x 500um	Detector Integration: 1 millisecond to 60 secs
Pixel well depth: 130 x10⁸ electrons	Slit size options: 25μm
Selectable well control: 130 x10⁸ or 5 x10⁶ el.	Operating systems: Win XP, Vista, 7, 8, & 10
Signal to noise: 4000:1 with TEC cooling	Software included: SpectraWiz programs & Apps
Digitizer: 16-bit	Also free programs for: LabView, Excel+VBA, Delphi
