System

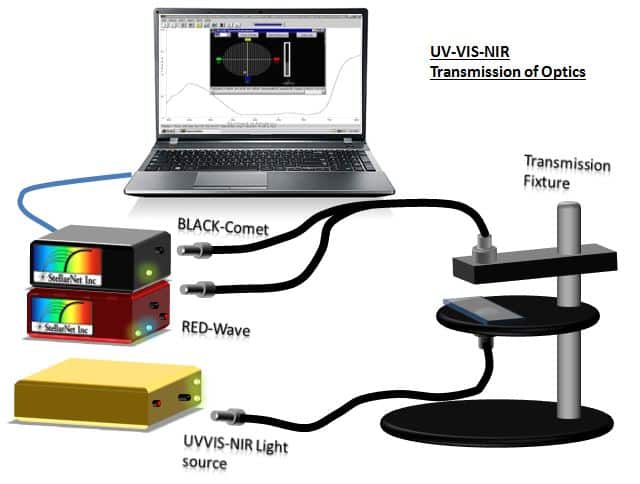

Filter Transmission Measurements (200-1700nm) using a SL5 UV-VIS Deuterium Halogen Light Source, Transmission Fixture, Optical Fibers and Y-splitter fiber, and BLACK-Comet + DWARF-Star DUAL-DSR System
| 투과율측정시스템 구성품 | |||||||||||
| 1 | . | BLKC-SR | 1 | ea | |||||||
| BLACK-Comet-SR Concave Grating Super Range spectrometer for UV-VIS-NIR, NO mirrors, aberration corrected, flat field provides uniform resolution! Choose model C-SR (200-1080nm) or CXR-SR (220-1100nm). Price includes16-bit electronics upgrade, slit, UV detector upgrade, integrated order sorting filters, and USB-2 interface cable. | |||||||||||
| 2 | . | TFX1 | 1 | ea | |||||||
| Transmission fixture with 1cm gap for sample insertion. 2 way fiber attachment includes 2 LENS-QCOL collimators. Measures sample transmittance and allows absorbance measurement of 1cm cuvettes. | |||||||||||
| 3 | . | F600-UVVis-SR | 2 | ea | |||||||
| Armored, Solarization Resistant, 600um diameter single strand, multimode fiber optic cable for Deep UV application with black PVC jacket and 2 SMA connectors-2 meters length for wavelengths <400nm. | |||||||||||
| 4 | . | SL5 | 1 | ea | |||||||
| SL5 miniature deuterium halogen lamp for UV-VIS-NIR, 190-2500nm, shutter and lamp controls, operation outside U.S. requires UP12V adapter. Low output power recommended for absorption and transmission measurements. | |||||||||||
| 5 | . | SpectraWiz Software | 1 | ea | |||||||
| Real-time operating software for Windows 9x/XP/VISTA/7 includes integrated applications for SpectroRadiometry*, traditional Spectroscopy (absorbance/transmission/reflectance), CIELAB colorimetry, LED color analysis*, ChemWiz chemical concentrations, UVabc* monitors, Solar Match Monitor, episodic capture for time series analysis.(*=requires irradiance calibrations), and much more. | |||||||||||
