헤이즈 측정 시스템 (Haze Measurement System)

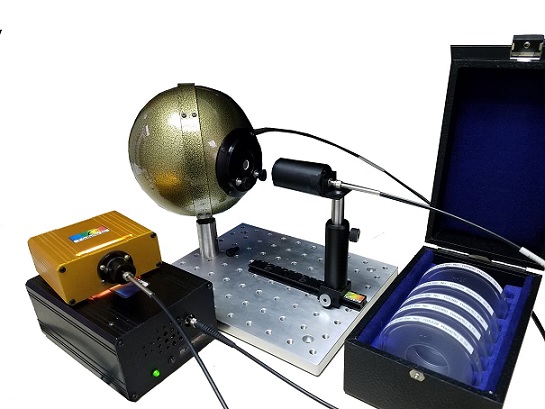

헤이즈(haze)측정시스템

Measure % Haze(헤이즈), % Total Transmittance, and color of films, filters, plastics, liquids, and just about any optical element

Haze meter include a fiber optic spectrometer, light source with integrated optical amplification and collimation lens, and custom haze measurement sphere with diffuse transmission port & sample clips

Measure all ranges from 0-100% Haze and Transmission with SpectraWiz L*a*b* CIELAB values

Custom StellarHaze Software for real time haze calculations

Research grade optical performance and repeatability

Measurement Procedure:
Haze(헤이즈) measurements require a few measurements to be included into a formula and generate a haze value. Once all of the measurements are saved under the data tab, the haze value will be displayed on top of the software screen. Please follow the procedure below for the best results:

적분구-Dark 스펙트럼 측정 적분구-표준(reference)광원측정 적분구-total transmission(투고율) 측정
적분구- Diffuse reference 스펙트럼 측정 적분구- Diffuse transmission(투과율)측정

Haze and Transmission Sample Spectra

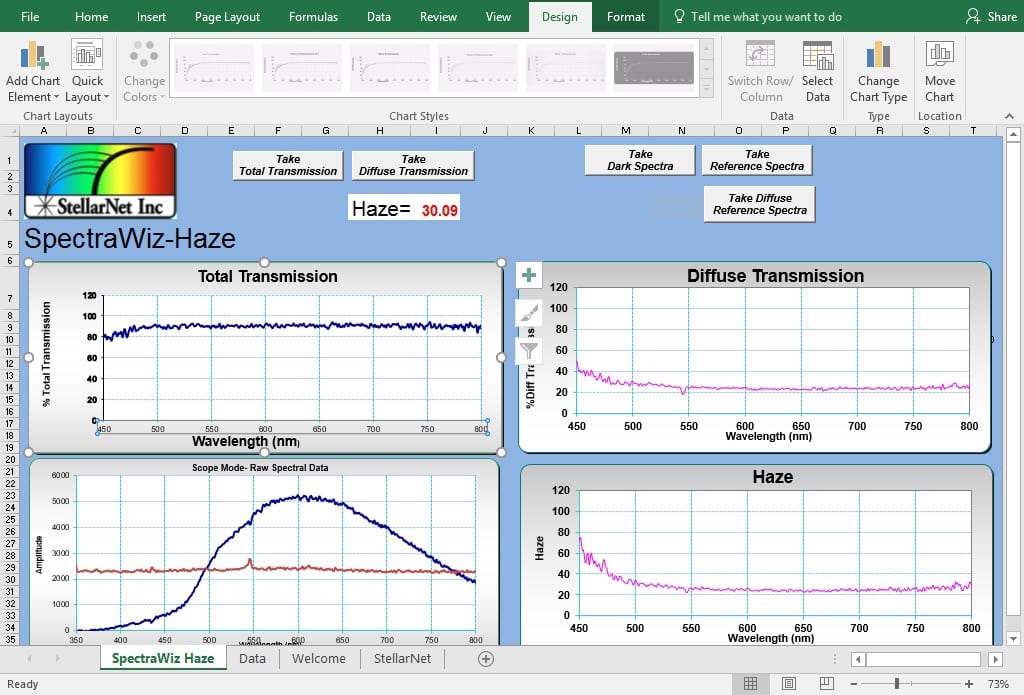

Haze Measurements of 30% verification standards.
The haze measurement requires 4 measurements
(1) sample reference (2) sample diffuse reference (3) sample total transmittance (4) sample diffuse transmittance

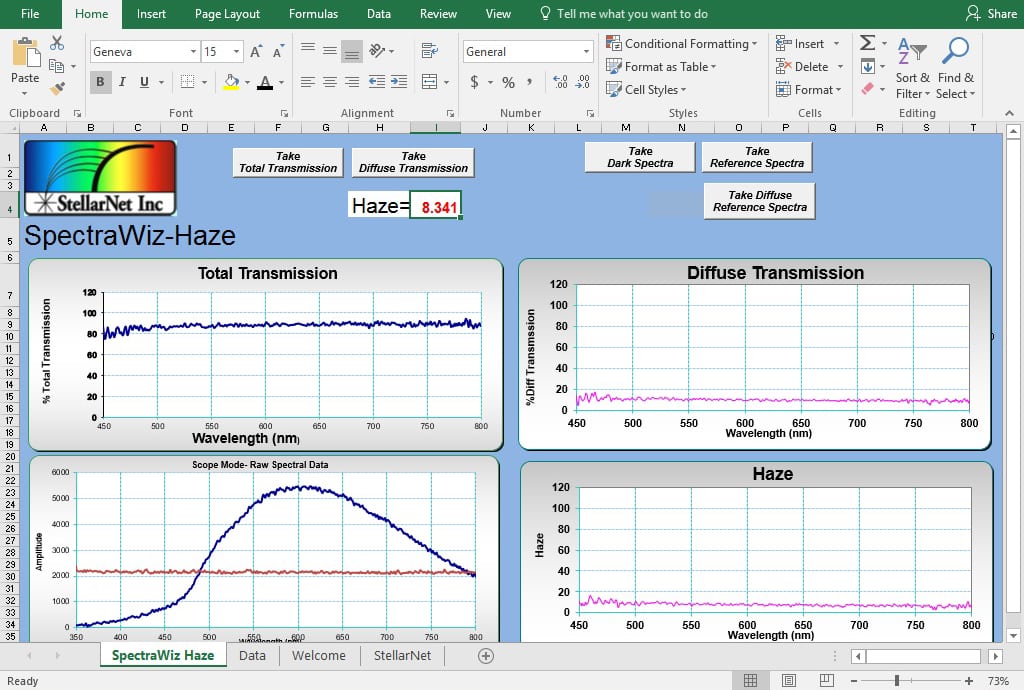

Haze Measurements of 8% verification standards

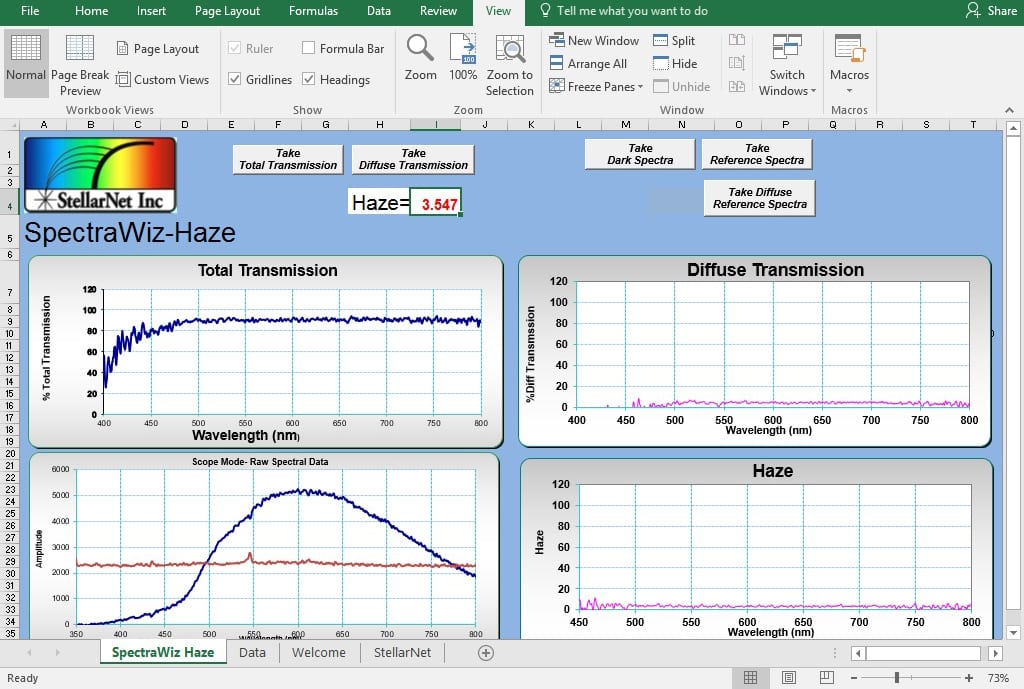

Haze Measurements of 3.5% verification standards

Specifications

Spectrometer: BLACK-Comet	System Dimensions: 10 x 12 x 10”
Spectrometer range: 280-900nm	Measurement Speed: <1 second
Optical resolution: 6nm	Spectrometer Interface: USB2
Detector type: 2048 pixel CCD	PC Specs: Win7-10, 32 or 64-bit
Measurement Area: ø13mm	Software included: SpectraWiz & SpectraWiz-Haze
Measurement Range: 0-100%	Additional Components: Optional Haze Reference Standards (30%,20%, 10% 5%, 2% Haze)
Geometry: 0 / diffuse
