현미경시스템 (StellarSCOPE™ System for Microscopy)
capture high resolution images, video, and time lapse video
CMOS 1.3 Mpixel Camera, optical switch, and required SMA couplers & attachment accessories for your specific application.
Microscopy Measurement System
StellarNet has released the StellarSCOPE™ System that allows users to couple their favorite StellarNet spectrometer
systems to a microscope. This enables users to perform Raman, Fluorescence, & CIELAB color measurements on
a micro spot and capture high resolution images, video, and time lapse video of their samples.
The StellarSCOPE System(현미경시스템) is a powerful add-on to your StellarNet spectroscopy system allowing
for the most affordable Raman and fluorescence microscopy systems on the market.
Configurations for multi-wavelength Raman spectroscopy are also available.
Raman Configurations
• 532, 785, 830, & 1064nm Options
• Dual Wavelength Systems Available

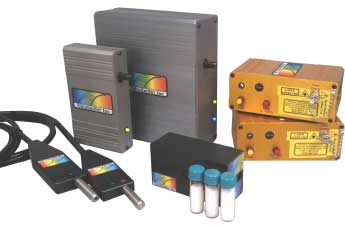

• Compatible with Ramulaser or Lab-Lasers
• High Performance Raman-HR-TEC

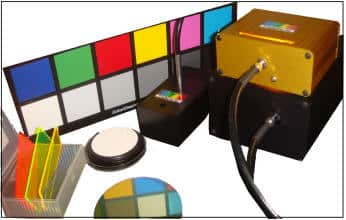

Color Analysis Configurations
• Measure sample spot L*a*b* values
• Compare colors quickly & accurately
• Color variation displayed as numerical dE value
• Couple with BLACK-Comet & Colorimetry Accessories

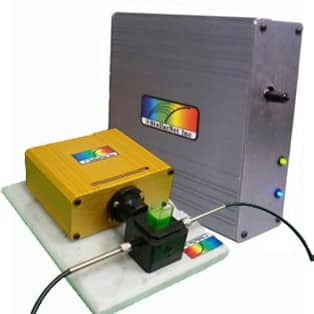

Fluorescence Configurations
• SL1-LED excitation source with UV-LED kit
• SILVER-Nova spectro for the highest sensitivity
• Coupling optics, filters, & accessories available
StellarSCOPE™ Microscopy Sample Spectra

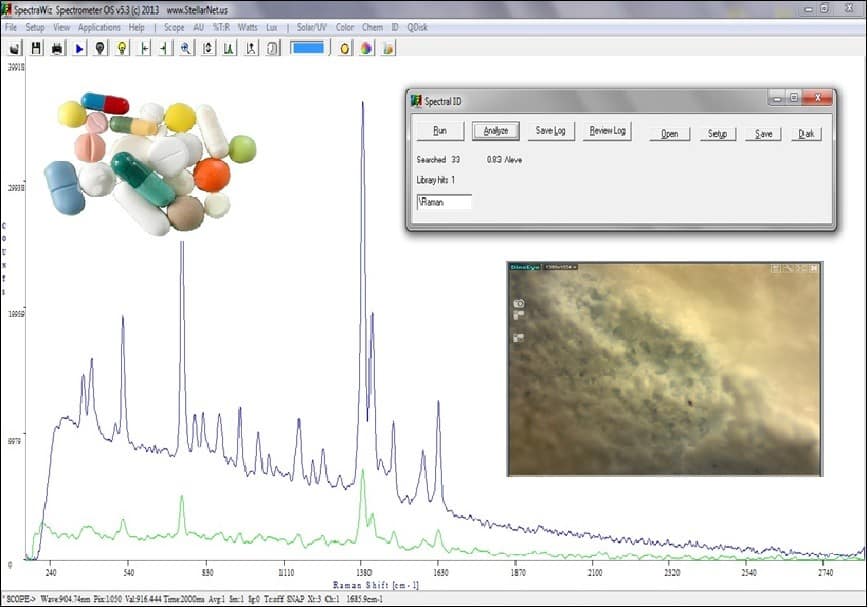

Pharmaceuticals– Tablet fraction @ 4x zoom & Raman using StellarSCOPE System
configured for 785nm Raman. SpectraWizID displays library match

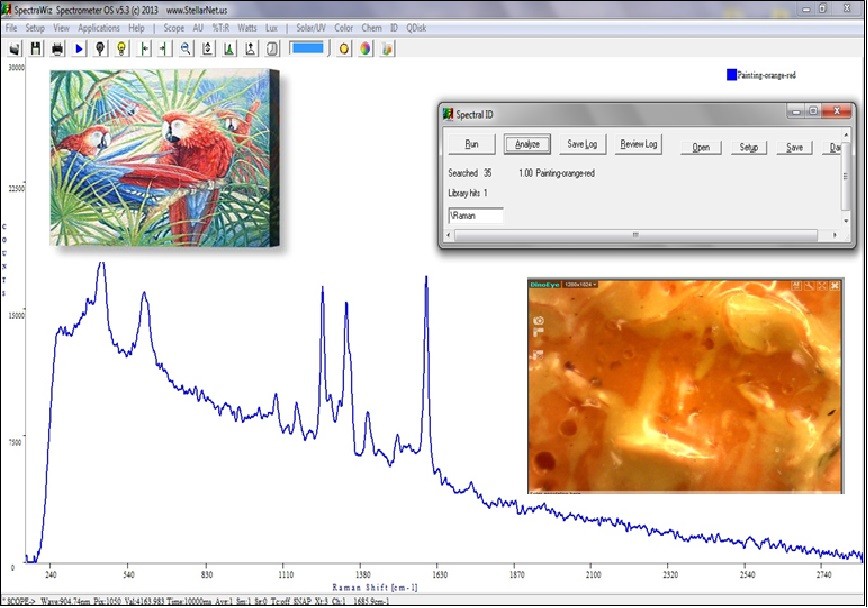

Art Authentication- StellarSCOPE @ 10x zoom coupled to a 785nm Raman Spectrometer
allows art experts to compare spectral database of art and archaeological materials
to determine the samples chemical composition & its authenticity.

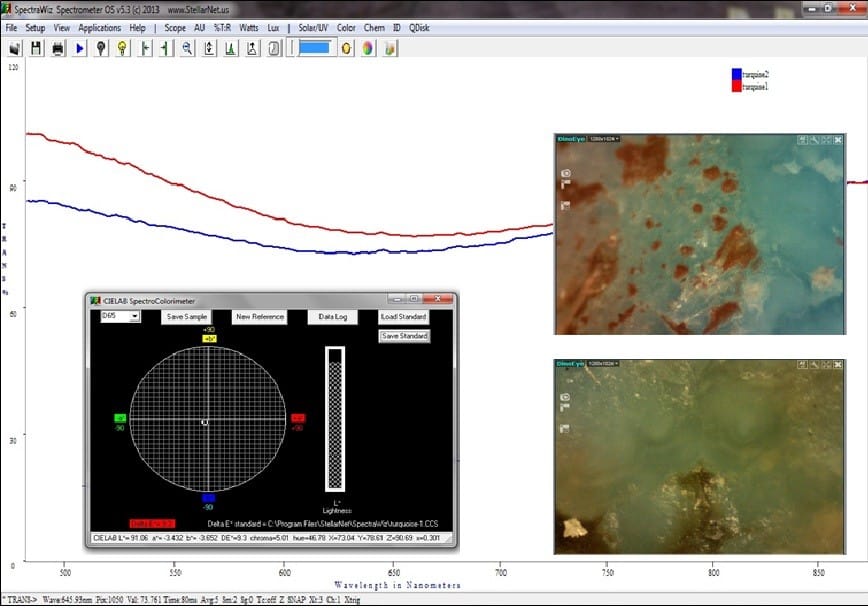

Colorimetry of Gemstones – Qualitative color analysis using CIELAB, turquoise gemstones
can be used for precise comparative analysis using dE color standards

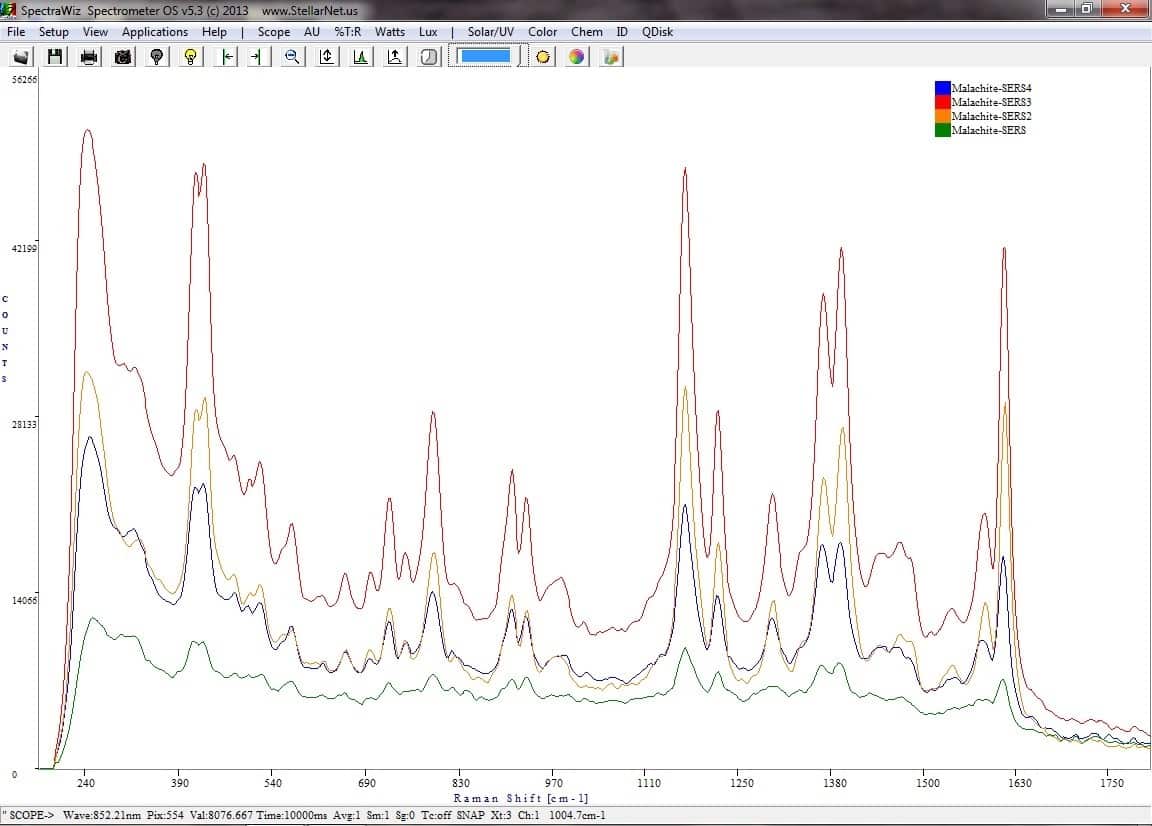

Surfaced Enhanced Raman (SERS)– Microscope pack can be used to accurately sample
concentrated areas on the edge of sample droplets on our SERS substrates
Combined Systems– StellarSCOPE Systems allows for mix & match systems such as
Multi-Wavelength Raman including 532/785/1064nm configurations

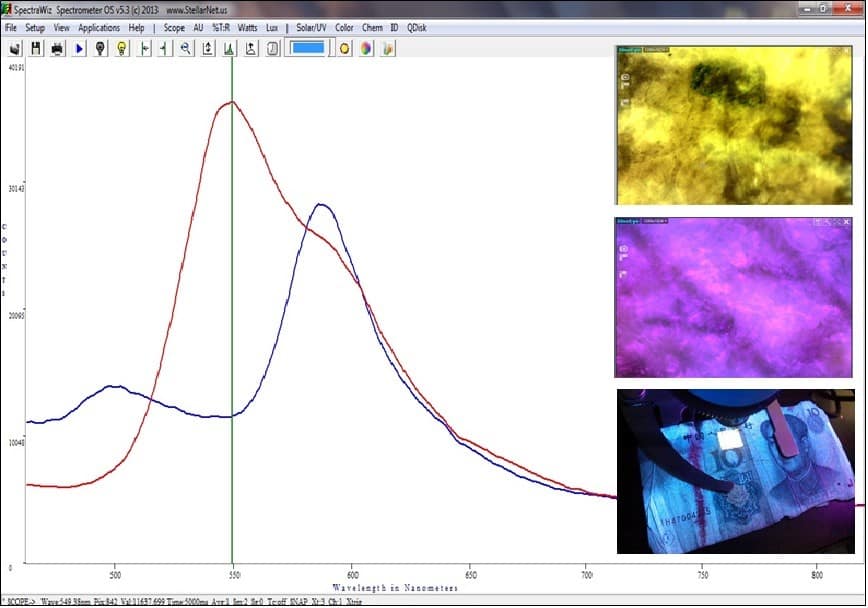

Fluorescence of an RMB – StellarSCOPE System configured for fluorescence microscopy.
View micron spot size of fluorescence with SL1-LED and SILVER-Nova
| Item | ||
| StellarSCOPE | Microscope System with Accessories | |
| StellarScope System for Microscopy | ||
| Optical system | UIS2 (Universal Infinity-corrected) optical system | |
| Illumination | Built-in transmitted Koehler illuminator 6V30W halogen bulb 100-120V/220-240Vg 0.85/0.45A 50/60Hz | |
| Focusing | •Stage height movement by roller guide (rack & pinion) •Stroke per rotation: 36.8mm •Full stroke range: 25mm •Upper limit stopped by simplified pre-focusing dial •Tension adjustment on coarse focus adjustment knob | |
| Measurement Stage | Size: 188(W) X 134(D)mm Movement range: 76mm X-direction X 50mm Y-direction Specimen holder, Double slide holder, Rubber grip Equipped as standard | |
| Objectives | 4, 10, 40x with working distance 18.5mm, 10.6mm, & 0.6mm | |
| Camera | 1.3 Megapixel resolution, image capture, video and time lapse video modes | |
| Multi-Mode Feature | Easy adjustment switch between Camera Mode and Spectrometer Mode | |
