Schlieren (쉬리렌)
Optical system for quantitative observation of air flow or streams in glass (striae).
It expresses invisible minute variations in refractive index with intensity of optical luminance.
Projection images of Schlieren can be observed on a monitor using an image sensor.

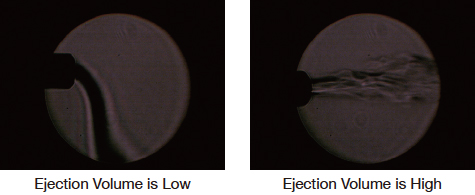

Observation of Air Flow ejected by Air Blower
* Use of white light source provides clear images without irrelevant noises or diffraction fringes.
* Since the intensity of white light is low, requires a darkroom to observe images projected on the screen.
* Allows variations in observation area by changing focal length of the imaging lens or position of a sample, lens or camera.
Before purchase, check the observation area.
* The maximum observation area is φ27mm.
Contact us if you need a larger observation area.
| Product Name | Part Number | Quantity | Optical Axis Height[mm] |
| White Light Source Component | SRS-WL | 1 | 171 |
| Iris Diaphragm Component | IFC2-IR | 1 | 169.5 |
| Collimator Lens Component | IFC2-CL | 2 | 160 |
| Mirror Component | IFC2-M | 2 | 173 |
| Slit Component | SRS-SL | 1 | 170 |
| Imaging Lens Component | IFC2-KL | 1 | 178 |
| Camera Component | IFC2-UC2 | 1 | 179.5 |
Screen 대신 카메라를 사용할 수 있음.
