Interferometer
Mach-Zehnder Interferometer (마하젠더 간섭계)

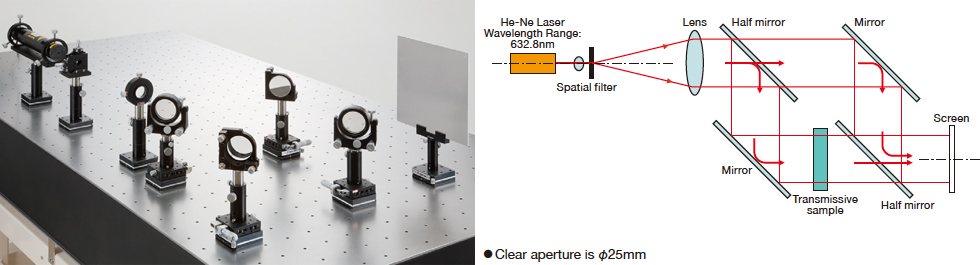

Two beams divided from a single beam transmit different paths, and are recombined by another half mirror to generate interference fringes.
Since optical paths are not returned by a mirror, it is a single path interferometer where a beam passes a sample only once.
A measured value of this interferometer is twice the result of the Michelson or Fizeau interferometer.
It is used for observation of transmitted wavefronts of transmission samples.
| Product Name | Part Number | Quantity | Optical Axis Height [mm] |
| Laser Components | IFC2-L | 1 | 171 |
| Spatial Filter Component | IFC2-SF | 1 | 165 |
| Collimator Lens Component | IFC2-CL | 1 | 160 |
| Mirror Component | IFC2-M | 2 | 173 |
| Beamsplitter Component | IFC2-BS | 2 | 178 |
| Screen Component | IFC2-SC | 1 | 222.5 |
Screen 대신 카메라를 사용할 수 있음.
