Fiber Coupled LED
Data Sheet for Single Wavelength LED
 |
 |

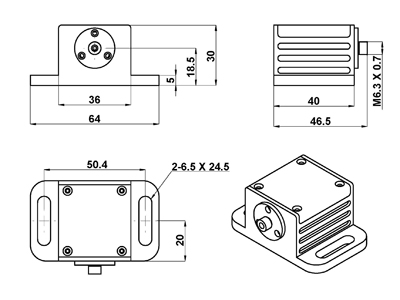

| LED Head | LED Power Supply |
| Model | Color |
Nominal Wavelength (nm) |
Bandwidth FWHM (nm) | Typical Φ600um Core Fiber Output Power SMA (mW) | Maximum Current CW (mA) | Forward Voltage (V) | Typical Lifetime (h) |
| LFM375 |
UV |
375 | 16 | 3 | 700 | 3.4 | 10000 |
| LFM400 | UV | 400 | 11 | 3 | 1000 | 3.8 | 10000 |
| LFM405 | UV | 405 | 12 | 4.2 | 700 | 3.8 | 10000 |
| LFM435 | Violet | 435 | 15 | 4.5 | 700 | 3.6 | 10000 |
| LFM460 | Royal Blue | 460 | 25 | 6 | 1000 | 3.6 | 10000 |
| LFM470 | Blue | 470 | 20 | 3.2 | 1000 | 3.4 | 10000 |
| LFM500 | Cyan | 500 | 30 | 2.2 | 1000 | 3.2 | 10000 |
| LFM520 | Green | 520 | 25 | 2.5 | 1200 | 3.4 | 10000 |
| LFM600 | Amber | 600 | 15 | 1.2 | 1000 | 2.6 | 10000 |
| LFM620 | Red | 620 | 15 | 5.5 | 1200 | 2.5 | 10000 |
| LFM660 | Deep Red | 660 | 20 | 4 | 700 | 2.4 | 10000 |
| LFM850 | IR | 850 | 25 | 3 | 700 | 2.2 | 10000 |
| LFM940 | IR | 940 | 30 | 2 | 700 | 1.6 | 10000 |
